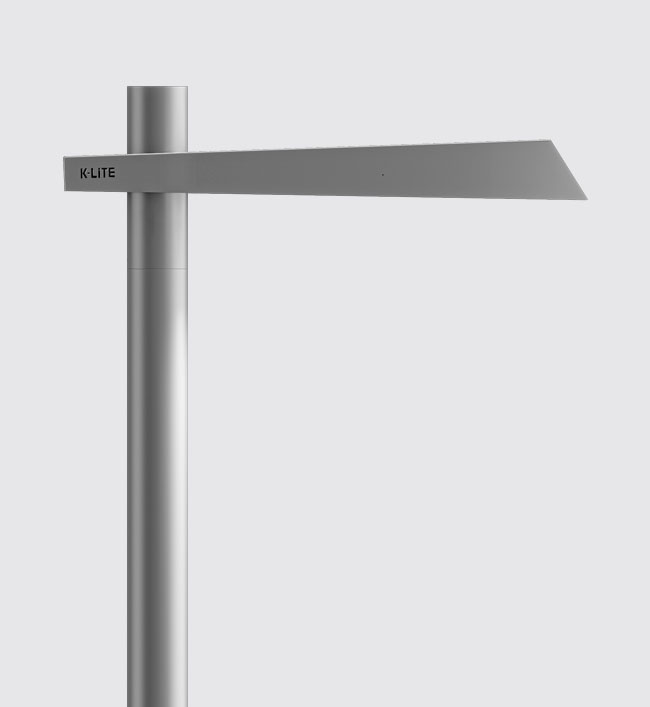

Palma
"The "Palma" street light luminaire seems to be designed with a focus on visual integration with the environment, utilizing high-quality LED sources known for their low energy consumption and long lifespan. The mention of asymmetrical light distribution suggests that the luminaire is engineered to direct light in a specific pattern, possibly to maximize illumination where needed while minimizing light spillage in undesired directions."

Material
Body : Aluminium & Extruded aluminium
Impact Protection : IK08
Ingress Protection : IP65 Module
Diffuser : Polycarbonate Optical Lens
Mounting : Suitable for mounting on 88.9mm OD pole.

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV

Product Configurations
Wattage : 100W
Light Distribution : Type II / Type III / Type IV
CCT : 3000K / 4000K / 5700K
LED Life Time : L70 B10 1,00,000 H

Area of Application
Illuminating parks, Gardens, commercial & office complex, Street Lighting, Courtyards.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4390100W LED 3000K,4000K,5700K BA:Type II,Type III,Type IV, Polycarbonate Optical Lens868 x 249 x 303mmD26
KL-4390-BATYPEIII-CW.IES
KL-4390-BATYPEIII-CW.PDF
4390.pdf
