Bema - Square
Bema square surface mounted range of LED slim ceiling lights are a perfect fit for ambient lighting applications.The die cast aluminium housing is ideal for better thermal management.
High lumen output & CCT options make this versatile for superior glare free indoor lighting solutions.

Product Description
• LED ceiling surface mounted - indoor luminaire with soft light.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High lumen output, Integrated with 2835 LEDs.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable.
• Prewired with constant current LED driver and suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7333-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6000K.

Product Benefits
• Attractive high quality housing and optics.
• Visual comfort with maximum energy saving.
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

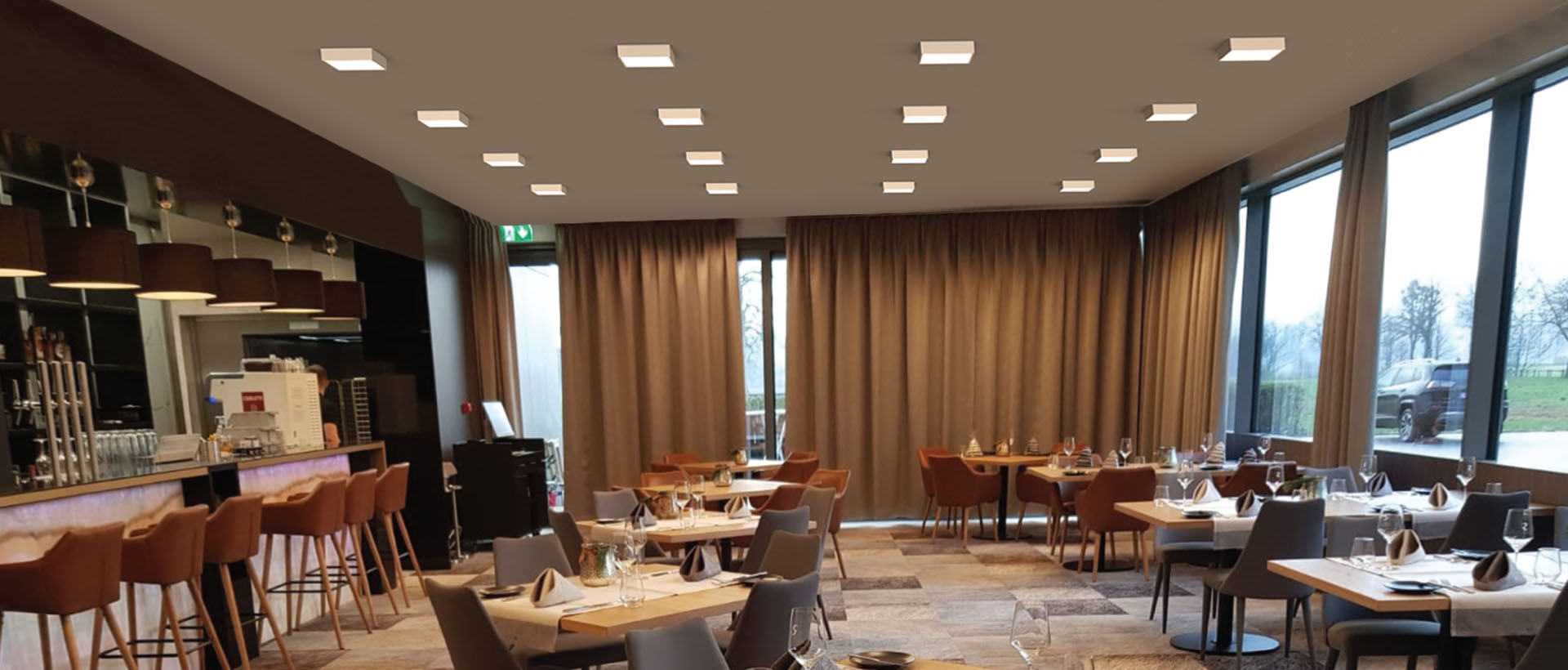

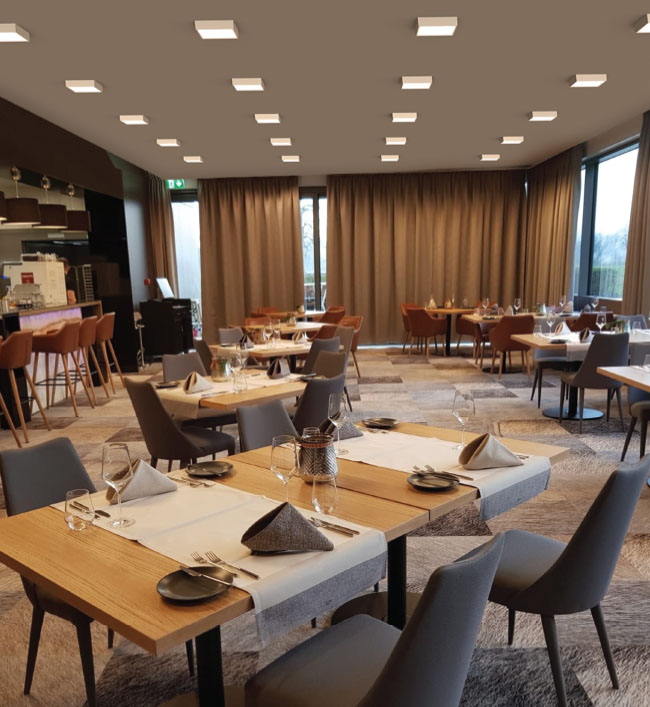

Area of Application
Lobbies & Foyers,Retail Sector,Corridors,Residential,Receptions,Internal passages,Hospitality Industry,Commercial & Business Centers, etc.

Available Finish
White epoxy polyester powder coating.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

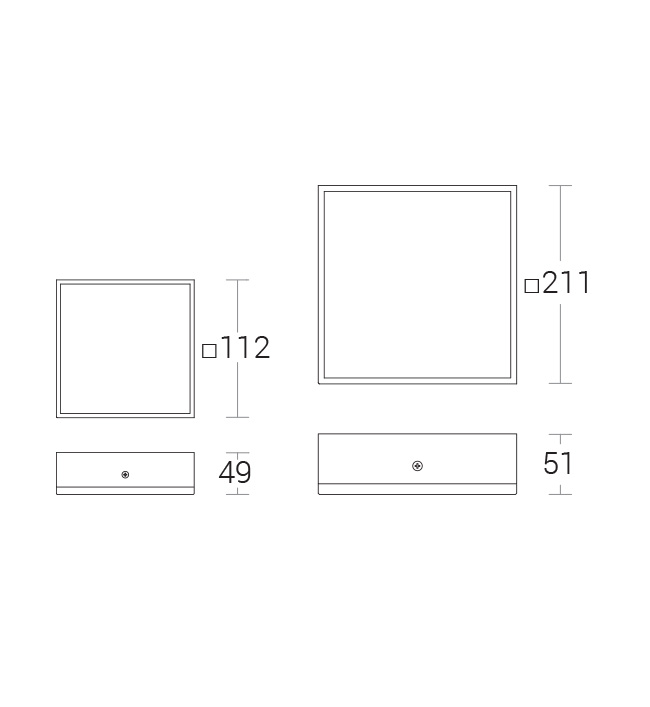

KL-733116W LED WW,NW,CW BA:120°, Translucent PolystyreneSq.112 x 49mmKL-7331.IES
KL-7331.PDF
7331.pdf
KL-733336W LED WW,NW,CW BA:120°, Translucent PolystyreneSq.211 x 51mmKL-7333.IES
KL-7333.IES
KL-7333.PDF
KL-7333.PDF
7333.pdf
