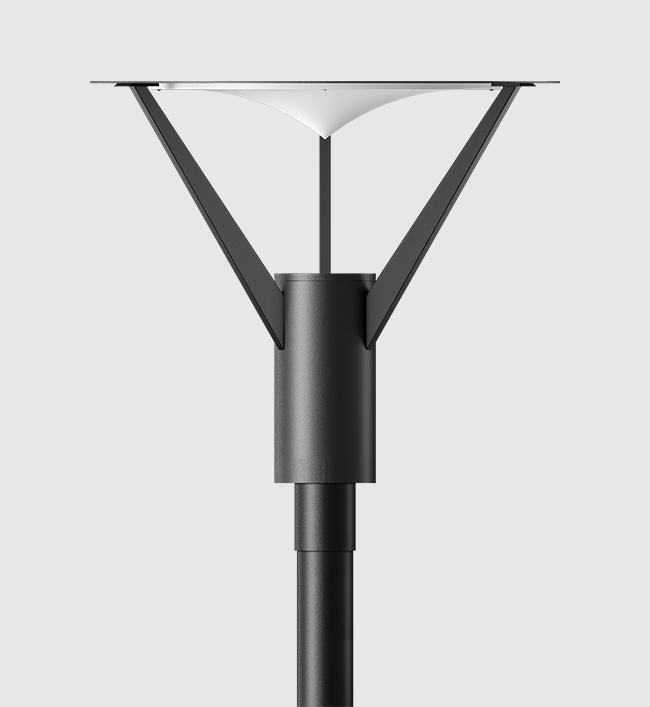

Dixon Pro
The "Dixon Pro" post-top luminaire boasts robust construction, meticulously engineered to withstand diverse weather conditions. This durability ensures consistent performance throughout its operational lifespan. By enduring harsh elements, it reduces the necessity for frequent maintenance, providing reliable lighting that remains effective over time.

Material
Body : Extruded aluminium (grade 6063)
Bracket : Gravity die cast aluminium
Reflector : Spun Aluminium white powder coated for high reflection
Diffuser : Toughened glass
Ingress Protection : IP65
Mounting : Die cast aluminium base suitable for mounting on 101mm OD pole.

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV

Product Configurations
Wattage : 40W
Beam Angle : 25°
CCT : 2700K / 3000K / 4000K / 6500K
LED Life Time : L70 B10 60,000 H

Area of Application
Illuminating parks, Gardens, Commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-452740W LED 2700K,3000K,4000K,6500K BA:25°, Clear Toughened GlassØ770 x 778mmD13
4527.pdf
