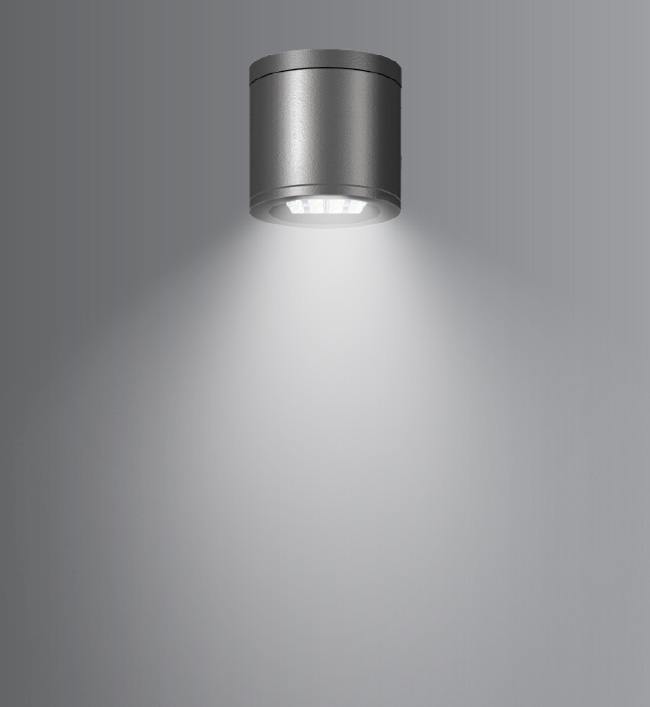

Cylin Midi
Compact and efficient ceiling mounted down lighters.High protection class & lumen output makes it versatile solution for both indoor & outdoor applications.

Product Description
• Luminaire made of pressure die cast aluminium,extruded aluminium & non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Polycarbonate optics lens.
• Cast aluminium plate for surface mounting onto the ceiling.
• Surface mounting on ceiling using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-3629-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Quick & simple installation.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

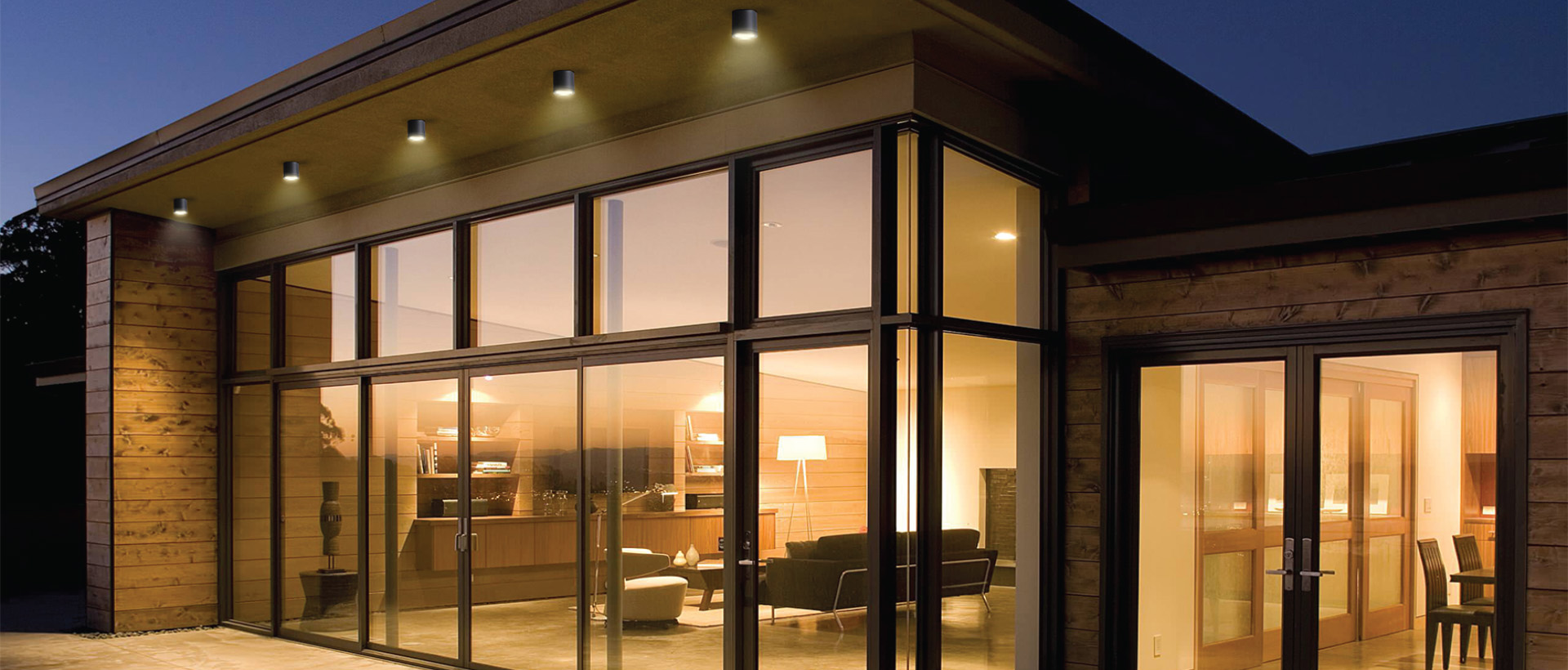

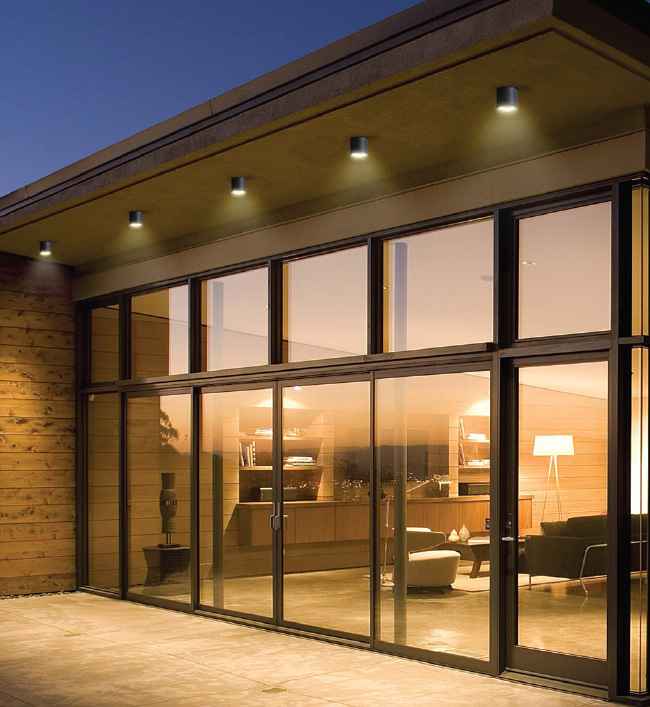

Lobbies & Foyers,Retail outlets,Corridors,Corporate,Residential & Educational premises,Hospitality Industry,Commercial & Business Centers.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

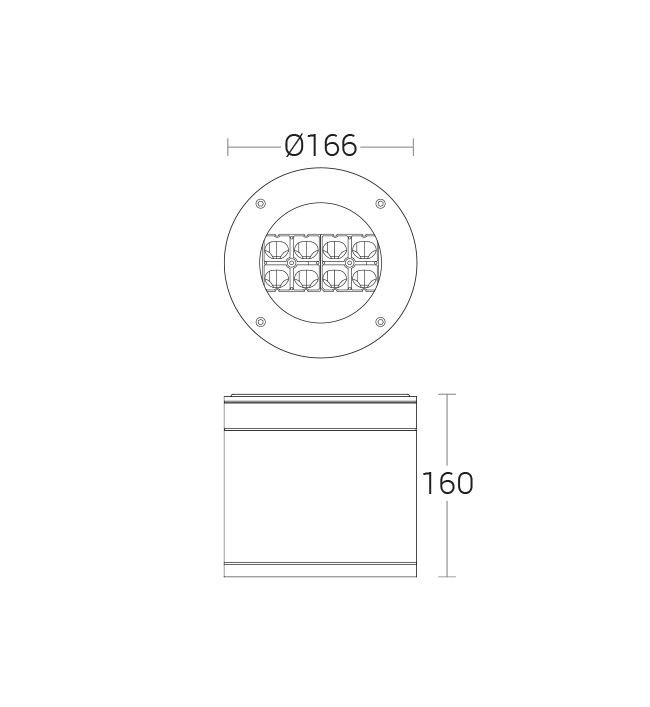

KL-362930W LED 3000K,4000K,5700K BA:Type IV, Clear Toughened GlassØ166 x 160mmKL-3629.IESKL-3629.PDF3629.pdf
KL-3629.txt
