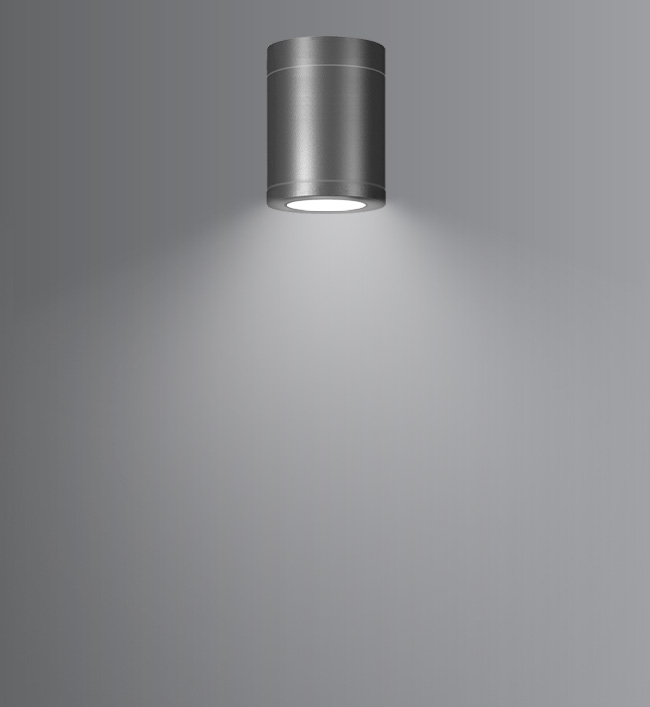

Cylin Mini
Compact and efficient ceiling mounted down lighters.High protection class & lumen output makes it versatile solution for both indoor & outdoor applications.

Product Description
• Luminaire made of pressure die cast aluminium,extruded aluminium & non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Hybrid optics with lens & reflector combination for higher efficiency,lower optical losses with optimum glare suppression.
• Cast aluminium plate for surface mounting onto the ceiling.
• Surface mounting on ceiling using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-3646-CCT (Colour Temperature)
• Available CCT : 2700K,4000K (CW on request).

Product Benefits
• High luminous efficiency at reduced wattage.
• Quick & simple installation with low maintenance.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

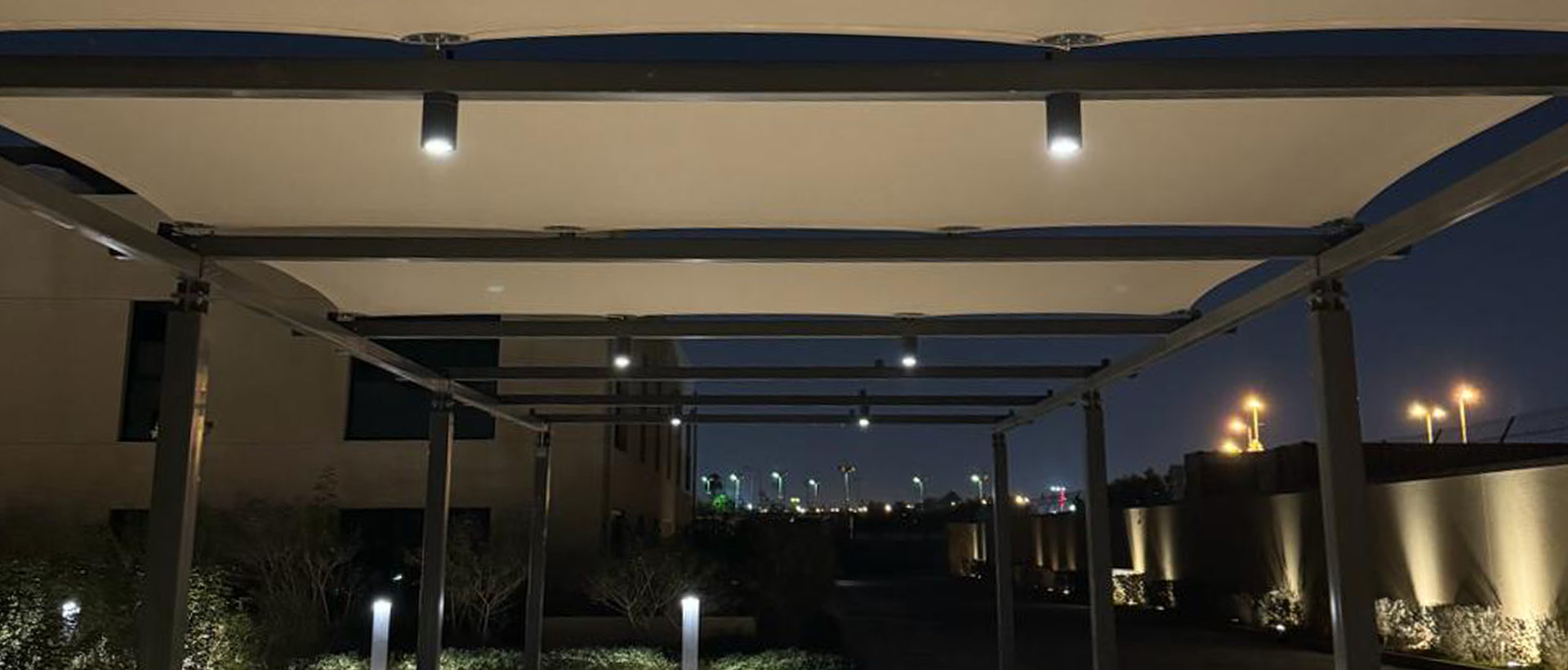

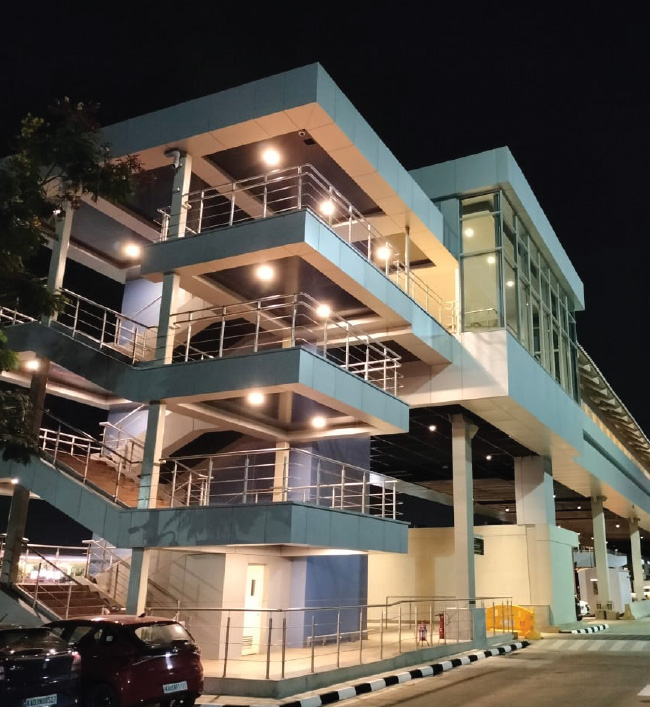

Lobbies & Foyers,Retail outlets,Corridors,Corporate,Residential & Educational premises,Hospitality Industry,Commercial & Business Centers.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

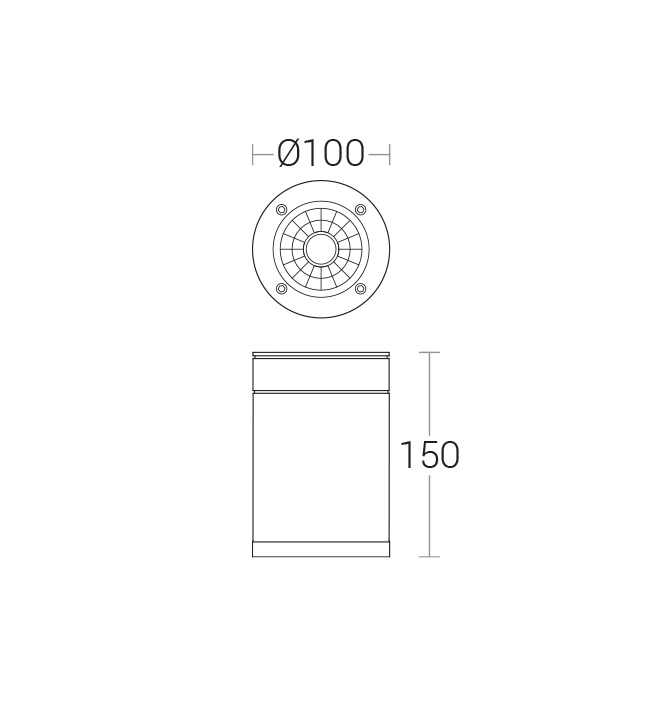

KL-36466W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened GlassØ100 x 150mmKL-3646-BA25°-3000K.IES
KL-3646-BA25°-4000K.IES
KL-3646-BA40°-3000K.IES
KL-3646-BA15°-3000K.IES
KL-3646-BA15°-4000K.IES
KL-3646-BA40°-4000K.IES
KL-3646-BA15°-2700K.IES
KL-3646-BA25°-2700K.IES
KL-3646-BA40°-2700K.IES
KL-3646-BA15°-6500K.IES
KL-3646-BA25°-6500K.IES
KL-3646-BA40°-6500K.IES
KL-3646-BA25°-3000K.PDF
KL-3646-BA25°-4000K.PDF
KL-3646-BA40°-3000K.PDF
KL-3646-BA15°-3000K.PDF
KL-3646-BA15°-4000K.PDF
KL-3646-BA40°-4000K.PDF
KL-3646-BA15°-2700K.PDF
KL-3646-BA25°-2700K.PDF
KL-3646-BA40°-2700K.PDF
KL-3646-BA15°-6500K.PDF
KL-3646-BA25°-6500K.PDF
KL-3646-BA40°-6500K.PDF
3646.pdf
KL-3646.txt
KL-364712W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened GlassØ100 x 150mmKL-3647-BA25°-WW.IES
KL-3647-BA25°-NW.IES
KL-3647-BA40°-WW.IES
KL-3647-BA15°-WW.IES
KL-3647-BA15°-NW .IES
KL-3647-BA40°-NW .IES
KL-3647-BA25D-2700K.IES
KL-3647-BA25D-3000K.IES
KL-3647-BA25D-4000K.IES
KL-3647-BA25D-6500K.IES
KL-3647-BA15D-2700K.IES
KL-3647-BA15D-3000K.IES
KL-3647-BA15D-4000K.IES
KL-3647-BA15D-6500K.IES
KL-3647-BA40D-2700K.IES
KL-3647-BA40D-3000K.IES
KL-3647-BA40D-4000K.IES
KL-3647-BA40D-6500K.IES
KL-3647-BA25°-WW.PDF
KL-3647-BA25°-NW.PDF
KL-3647-BA40°-WW.PDF
KL-3647-BA15°-WW.PDF
KL-3647-BA15°-NW .PDF
KL-3647-BA40°-NW .PDF
KL-3647-BA25D-2700K.PDF
KL-3647-BA25D-3000K.PDF
KL-3647-BA25D-4000K.PDF
KL-3647-BA25D-6500K.PDF
KL-3647-BA15D-2700K.PDF
KL-3647-BA15D-3000K.PDF
KL-3647-BA15D-4000K.PDF
KL-3647-BA15D-6500K.PDF
KL-3647-BA40D-2700K.PDF
KL-3647-BA40D-3000K.PDF
KL-3647-BA40D-4000K.PDF
KL-3647-BA40D-6500K.PDF
3647.pdf
KL-3647.txt
KL-408218W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened GlassØ100 x 150mmKL-4082-BA25°-WW.IES
KL-4082-BA25°-NW.IES
KL-4082-BA40°-WW.IES
KL-4082-BA15°-WW.IES
KL-4082-BA15°-NW .IES
KL-4082-BA40°-NW .IES
KL-4082-BA25D-2700K.IES
KL-4082-BA25D-3000K.IES
KL-4082-BA25D-4000K.IES
KL-4082-BA25D-6500K.IES
KL-4082-BA15D-2700K.IES
KL-4082-BA15D-3000K.IES
KL-4082-BA15D-4000K.IES
KL-4082-BA15D-6500K.IES
KL-4082-BA40D-2700K.IES
KL-4082-BA40D-3000K.IES
KL-4082-BA40D-4000K.IES
KL-4082-BA40D-6500K.IES
KL-4082-BA25°-WW.PDF
KL-4082-BA25°-NW.PDF
KL-4082-BA40°-WW.PDF
KL-4082-BA15°-WW.PDF
KL-4082-BA15°-NW .PDF
KL-4082-BA40°-NW .PDF
KL-4082-BA25D-2700K.PDF
KL-4082-BA25D-3000K.PDF
KL-4082-BA25D-4000K.PDF
KL-4082-BA25D-6500K.PDF
KL-4082-BA15D-2700K.PDF
KL-4082-BA15D-3000K.PDF
KL-4082-BA15D-4000K.PDF
KL-4082-BA15D-6500K.PDF
KL-4082-BA40D-2700K.PDF
KL-4082-BA40D-3000K.PDF
KL-4082-BA40D-4000K.PDF
KL-4082-BA40D-6500K.PDF
4082.pdf
KL-4082.txt
